semiconix semiconductor - where the future is today - gold chip technology SMX LM324 - BARE DIE
GOLD CHIP TECHNOLOGY™ Low Power Quad Operational Amplifiers

FEATURES APPLICATIONS Quad Operational Amplifiers
Internally frequency compensated for unity gain
Large DC voltage gain 100dB
Wide bandwidth (unitygain) 1MHz
Very low supply current drain (700µA) - essentially independent of supply voltage
Low input biasing current 45 nA
Low input offset voltage 2mV and offset current 5nA



In DIE form, this device is an excellent selection for many chip and wire HYBRID CIRCUITS









LM324 LM324 Low Power Quad Operational Amplifiers

SMXLM324 Low Power Quad Operational Amplifiers - PRODUCT DESCRIPTION
The SMX LM324 series are low cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

HIGH RELIABILITY BARE DIE AND SYSTEM IN PACKAGE - SHORT APPLICATION NOTE
COB (Chip on Board) and SiP (System-in-Package) are integrating proven mature products in bare die of mixed technologies i.e. Si, GaAs, GaN, InP, passive components, etc that cannot be easily implemented in SOC (System-on-Chip) technology. COB and SiP have small size footprint, high density, shorter design cycle time, easier to redesign and rework, use simpler and less expensive assembly process. For extreme applications the bare die has to withstand also harsh environmental conditions without the protection of a package. KGD, Known Good Die concept is no longer satisfactory if the die cannot withstand harsh environmental conditions and degrades. Standard semiconductor devices supplied by many manufacturers in bare die are build with exposed aluminum pads that are extremely sensitive to moisture and corrosive components of the atmosphere. Semiconix has reengineered industry standard products and now offers known good die for bare die applications with gold interconnection and well-engineered materials that further enhance the die reliability. Semiconix also offers Silicon Printed Circuit Board technology with integrated passive components as a complete high reliability SIP solution for medical, military and space applications. See AN-SMX-001

SEMICONDUCTOR INTEGRATED CIRCUITS MANUFACTURING PROCESS
Semiconductor Integrated Circuits are manufactured using Semiconix in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors, Tantalum Nitride TaN or Sichrome SiCr thin film resistors are easily integrated with other semiconductor devices on same chip to obtain standard and custom complex device solutions.

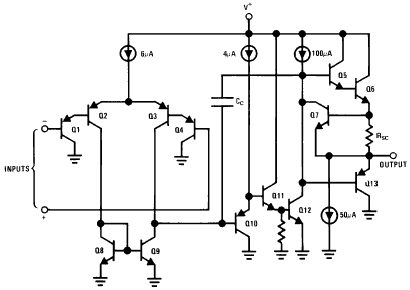

SCHEMATIC DIAGRAM
LM324 Texas Instruments LM324 Low Power Quad Operational Amplifiers

LM324 MAXIMUM RATINGS
PARAMETERSYMBOLVALUEUNITS
Power Supply VoltageVdc
Single SupplyVCC32V
Split SuppliesVCC,VEE±16V
Input Differential Voltage Range (Note 1)VDIR±32V
Input Common Mode Voltage RangeVICR-0.3 to 32V
Output Short Circuit DurationtSCContinuous
Junction TemperatureTJ150°C
Storage Temperature RangeTstg-55 to +125°C
Operating Ambient Temperature RangeTA0 to +70°C
ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

LM324 ELECTRICAL CHARACTERISTICS
TA=25°C unless otherwise specificed
PARAMETERTEST CONDITIONSSYMBOLMINTYPMAXUNITS
Input Offset VoltageVCC=5.0V to 30V VICR=0V to VCC=1.7V VO=1.4V, RS=0W TA=250°C TA=Thigh(Note 1) TA=Tlow(Note 1)VIO - - - 2.0 - - 7.0 9.0 9.0mV
Average Temperature Coefficient of Input Offset VoltageTA=Thigh to Tlow(Note 1)ΔVIO/ΔT-7-µV/°C
Input Offset Current Input Bias CurrentTA=Thigh to Tlow (Note 1) TA=Thigh to Tlow (Note 1)IIO- - - -5.0 - -90 -50 150 -250 -500nA
Average Temperature Coefficient of Input Offset VoltageTA=Thigh to Tlow (Note 1)-10-pA/°C
Input Common Mode Voltage Range (Note 2)VCC=30V V=30V TA=Thigh to Tlow (Note 1)VICR0 0- -28.3 28V
Differential Input Voltage RangeVIDR--VCCV
Large Signal Open Loop Voltage GainRL=2.0kW, VCC=15V, for Large VOSwing, TA=Thigh to Tlow (Note 1)AVOL25 15100 -- -V/mV
Channel Separation1.0kHz≤ f≤20kHz Input ReferencedCS--120-dB
Common Mode RejectionRS≤ 10kWCMR6570-dB
Power Supply RejectionPSR65100-dB
Output Voltage-High Limit(TA=Thigh to Tlow) (Note 1) VCC=5.0V, RL=2.0kW, TA=25°C VCC=30V, RL=2.0kW VCC=30V, RL=10kWVOH 3.3 26 27 3.5 - 28 - - -V
Output Voltage-Low LimitVCC=5.0V, RL=10kW (TA=Thigh to Tlow) (Note 1)VOL-520mV
Output Source CurrentVID=+1.0V, VCC=15V TA=25°C TA=Thigh to TlowIO+ 20 10 40 20 - -mA
Output Sink CurrentVID=-1.0V, VCC=15V TA=25°C TA=Thigh to Tlow VID=-1.0V, VCC=200mVIO- 10 5.0 12 20 8.0 50- -mA µA
Output Short Circuit to Ground (Note 3)ISC-4060mA
Power Supply CurrentTA=Thigh to Tlow (Note 1) VCC=30V, VO=0V, RL=¥ VCC=5.0V, VO=0V, RL=¥ICC - - - - 3.0 1.2mA
Note1 Tlow=0°C for LM324, Thigh=+70°C for LM324
Note2 The input common mode voltage or either input signal voltage should not be allowed to go negative by more than 0.3V. The upper end of the common mode voltage range is VCC -1.7V. pan>

SPICE MODEL
Spice model pending.

CROSS REFERENCE PARTS
BayLinear LM324, Fairchild Semiconductor LM324, Intersil LM324, Motorola LM324, National Semiconductor LM324, ON Semiconductor LM324, Philips LM324, SGS Thomson Microelectronics LM324, ST Microelectronics LM224A-LM324A, Texas Instruments LM324

GENERAL DIE INFORMATION
Substrate Thickness
[mils]
Die size
mils [mm]
Bonding pads Backside metallization
Silicon 10 62.992 x 59.843 ±1
[1.6 x 1.52]
3.543 x 3.543 mils, 1µm thick, aluminium Backside of the die is coated with 0.5µm GOLD , which makes it compatible with AuSi or AuGe die attach.

LM324 DIE LAYOUT - MECHANICAL SPECIFICATIONSLM324 DIE LAYOUT - MECHANICAL SPECIFICATIONS
PAD #FUNCTIONX(mils)X(mm)Y(mils)
1#1 OUT34.960.8883.464
2#1 IN-56.1021.4257.283
3#1 IN+56.1021.42520.511
4VCC56.1021.42528.031
5#2 IN+56.1021.42535.787
6#2 IN-56.1021.42549.015
7#2 OUT34.960.88852.834
8#3 OUT28.4880.6221.342
9#3 IN-3.3460.0851.245
10#3 IN+3.3460.0850.909
11GND3.720.0940.712
12#4 IN+3.3460.0850.521
13#4 IN-3.3460.0850.185
14#4 OUT24.4880.6220.088

SEMICONDUCTOR ASSEMBLY PROCESS - SHORT APPLICATION NOTE
Semiconix standard bare die components are designed for thermosonic GOLD wire bonding and AuSi eutectic die attach. For AuSn or AuGe die attach process, Ti/Pt/Au or Ti/Pd/Au are recommended backside metallization.
For soft solder die attach, backside metallization may be any of Ti/Ni/Au, Ti/Pt/Au, Ti/Pd/Au.
For silver filled conductive epoxy die attach, AuSi as well as Ti/Ni/Au, Ti/Pt/Au, Ti/Pd/Au may be used.
In general, after die attach, prior to wire bonding operation an oxygen RF plasma clean operation is recommended.
IMPORTANT NOTE: Aluminum wire should not be used with gold pads due to potential reliability problem known as purple plague. Same it applies to Aluminum bonding pads with gold wire! In the transition from SnPb solder to lead free and RoHS compliant packaging and assembly processes the reflow temperature has increased in some cases from 180°C to 220°C. This may cause an increase of the rate of formation of gold aluminum intermetallic compounds that are brittle and are conducive to increased contact resistance and or bond failure. See Application note AN-SMX-000.

LM324 STANDARD PRODUCTS PRICE LIST
USM PART #MINIMUM ORDER QUANTITYWaffle PacksU/P($)
USMLM324100pc-WP3.2
Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department.
List prices are for standard products, available from stock. List prices for other quantities and tolerances are available on line through Instant Quote. For standard products available from stock, there is a minimum line item order. For custom products please inquire by contacting SEMICONIX SEMICONDUCTOR technical sales. No rights can be derived from pricing information provided on this website. Such information is indicative only, is showed for budgetary use only and subject to change by SEMICONIX SEMICONDUCTOR at any time and without notice.
