GOLD CHIP TECHNOLOGY™ QUAD SINGLE SUPPLY COMPARATORS

FEATURES APPLICATIONS QUAD SINGLE SUPPLY COMPARATORS
Wide single supply 2.0V to 36V
Dual supplies:±1.0V to ±18V
Very low supply current drain (0.4 mA) independent of supply voltage






In DIE form, this device is an excellent selection for many chip and wire HYBRID CIRCUITS









LM339 LM339 QUAD SINGLE SUPPLY COMPARATORS

SMXLM339 QUAD SINGLE SUPPLY COMPARATORS - PRODUCT DESCRIPTION
The SMX LM339 series are dual independent precision voltage comparators capable of single or split power supply operation. These devices are designed to permit a common mode range–to–ground level with single supply operation.

HIGH RELIABILITY BARE DIE AND SYSTEM IN PACKAGE - SHORT APPLICATION NOTE
COB (Chip on Board) and SiP (System-in-Package) are integrating proven mature products in bare die of mixed technologies i.e. Si, GaAs, GaN, InP, passive components, etc that cannot be easily implemented in SOC (System-on-Chip) technology. COB and SiP have small size footprint, high density, shorter design cycle time, easier to redesign and rework, use simpler and less expensive assembly process. For extreme applications the bare die has to withstand also harsh environmental conditions without the protection of a package. KGD, Known Good Die concept is no longer satisfactory if the die cannot withstand harsh environmental conditions and degrades. Standard semiconductor devices supplied by many manufacturers in bare die are build with exposed aluminum pads that are extremely sensitive to moisture and corrosive components of the atmosphere. Semiconix has reengineered industry standard products and now offers known good die for bare die applications with gold interconnection and well-engineered materials that further enhance the die reliability. Semiconix also offers Silicon Printed Circuit Board technology with integrated passive components as a complete high reliability SIP solution for medical, military and space applications. See AN-SMX-001

SEMICONDUCTOR INTEGRATED CIRCUITS MANUFACTURING PROCESS
Semiconductor Integrated Circuits are manufactured using Semiconix in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors, Tantalum Nitride TaN or Sichrome SiCr thin film resistors are easily integrated with other semiconductor devices on same chip to obtain standard and custom complex device solutions.

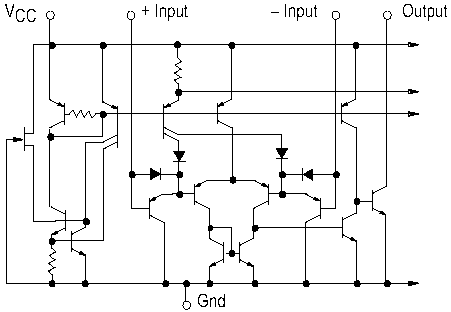

SCHEMATIC DIAGRAM
LM339 Texas Instruments LM339 QUAD SINGLE SUPPLY COMPARATORS

LM339 MAXIMUM RATINGS
PARAMETERSYMBOLVALUEUNITS
Power Supply VoltagesVcc+36 or 18Vdc
Input Differential Voltage RangeVdir32Vdc
Input Common Mode Voltage RangeVicmr-0.3 to VCCVdc
Output Short Circuit to Ground IscContinuous
Power dissipation TA = 25°C Derate Above 25°CPD8mW/°C
Junction temperatureTj150°C
Operating Ambient Temperature RangeTopa0 to +70°C
Storage Temperature RangeTstg-65 to +150°C
ONLY Proper die handling equipment and procedures should be employed. Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

LM339 ELECTRICAL CHARACTERISTIC
VCC = +5.0 Vdc, TA = +25°C, unless otherwise specified
PARAMETERTEST CONDITIONSSYMBOLMINTYPMAXUNITS
Input Offset Voltage (Note1)VIO±2.0±5.0mVdc
Input Bias Current (Note1, Note 2)IIB25250nA
Input Offset Current (Note 1)IIO±5.0±5.0nA
Input Common Mode Voltage RangeVICMRVCC-1.5V
Supply CurrentRL=¥, RL=¥, VCC = 30 VdcICC- -0.8 1.02.0 2.5mA
Voltage GainRL ≥15 k, VCC = 15 VdcAVOL50200V/mV
Large Signal Response TimeVI = TTL Logic Swing, Vref = 1.4 Vdc, VRL = 5.0 Vdc, RL = 5.1 kW-300ns
Response Time (Note 6)VRL = 5.0 Vdc, RL = 5.1 kW-1.3µs
Output Sink CurrentVI (-)≥+1.0 Vdc, VI(+) = 0,VO≤1.5 VdcISINK616mA
Saturation VoltageVI(-)≥+1.0 Vdc, VI(+) = 0, Isink≤4.0 mAVsat130400mV
Output Leakage CurrentVI(+)≥+1.0 Vdc, VI(-) = 0, VO = +5.0 VdcIOL0.1nA
(NOTE 1)At the output switch point, V O 1.4 Vdc, RS £ 100 5.0 Vdc £ VCC £ 30 Vdc, with the inputs over the full common mode range (0 Vdc to VCC 1.5 Vdc).
(NOTE 2)The bias current flows out of the inputs due to the PNP input stage. This current is virtually constant, independent of the output state.

SPICE MODEL
Spice model pending.

CROSS REFERENCE PARTS

GENERAL DIE INFORMATION
Substrate Thickness
[mils]
Die size
mils [mm]
Bonding pads Backside metallization
Silicon 10 61.024 x 62.992 ±1
[1.55 x 1.6]
4.724x4.724 Backside of the die is coated with 0.5µm GOLD , which makes it compatible with AuSi or AuGe die attach.

LM339 DIE LAYOUT - MECHANICAL SPECIFICATIONSLM339 DIE LAYOUT - MECHANICAL SPECIFICATIONS
PAD #FUNCTIONX(mils)X(mm)Y(mils)
1OUT#10.1054.1340.718
2OUT#20.1054.1340.333
3VCC0.1054.1340.11
4IN-#20.4818.8980.11
5IN+#20.9938.9760.11
6IN-#11.32552.1650.11
7IN+#11.32552.1650.53
8IN-#31.32552.1650.949
9IN+#31.32552.1651.369
10IN-#40.9938.9761.369
11IN+#40.4818.8981.369
12GND0.1054.1341.369
13OUT#40.1054.1341.118
14OUT#30.1054.1340.928

SEMICONDUCTOR ASSEMBLY PROCESS - SHORT APPLICATION NOTE
Semiconix standard bare die components are designed for thermosonic GOLD wire bonding and AuSi eutectic die attach. For AuSn or AuGe die attach process, Ti/Pt/Au or Ti/Pd/Au are recommended backside metallization.
For soft solder die attach, backside metallization may be any of Ti/Ni/Au, Ti/Pt/Au, Ti/Pd/Au.
For silver filled conductive epoxy die attach, AuSi as well as Ti/Ni/Au, Ti/Pt/Au, Ti/Pd/Au may be used.
In general, after die attach, prior to wire bonding operation an oxygen RF plasma clean operation is recommended.
IMPORTANT NOTE: Aluminum wire should not be used with gold pads due to potential reliability problem known as purple plague. Same it applies to Aluminum bonding pads with gold wire! In the transition from SnPb solder to lead free and RoHS compliant packaging and assembly processes the reflow temperature has increased in some cases from 180°C to 220°C. This may cause an increase of the rate of formation of gold aluminum intermetallic compounds that are brittle and are conducive to increased contact resistance and or bond failure. See Application note AN-SMX-000.

LM339 STANDARD PRODUCTS PRICE LIST
USM PART #MINIMUM ORDER QUANTITYWaffle PacksU/P($)
USMLM339100pc-WP$3.20
Products sold for space, military or medical applications, element evaluation and/or level K or S qualification are subject to minimum order levels to be established on a case by case basis. For any special applications, die level KGD qualification requirements, different packaging or custom configurations, contact sales department.
List prices are for standard products, available from stock. List prices for other quantities and tolerances are available on line through Instant Quote. For standard products available from stock, there is a minimum line item order. For custom products please inquire by contacting SEMICONIX SEMICONDUCTOR technical sales. No rights can be derived from pricing information provided on this website. Such information is indicative only, is showed for budgetary use only and subject to change by SEMICONIX SEMICONDUCTOR at any time and without notice.
